Your Position: Home > Wire Terminals > DIN Terminals > NYLON-INSULATED (EASY ENTRY) PIN TERMINALS(DIN 46237)

Material:
High-Conductivity Wrought Copper

Finish:
Electro Tin Plate

生成PDF

Cat.No
Application for Cable Size
- mm²
- A.W.G

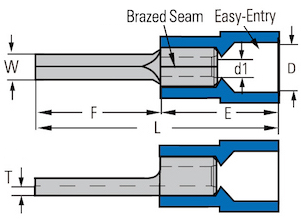

Dimension(mm)
- Stripped Length（mm)
- E
- T
- d1
- D
- L
- F
- W

PTNY1-9(BS)
0.5-1.5
22-16
7.5-8.0
10.7
0.75
1.7
3.9
19.8
9.00
1.9
$0.0

PTNY1-10(BS)
0.5-1.5
22-16
7.5-8.0
10.7
0.75
1.7
3.9
20.5
10.00
1.9
$0.0

PTNY1-12(BS)
0.5-1.5
22-16
7.5-8.0
10.7
0.75
1.7
3.9
22.5
12.00
1.9
$0.0

PTNY2-9(BS)
1.5-2.5
16-14
7.5-8.0
10.7
0.8
2.3
4.5
19.8
9.00
1.9
$0.0

PTNY2-10(BS)
1.5-2.5
16-14
7.5-8.0
10.7
0.8
2.3
4.5
20.5
10.00
1.9
$0.0

PTNY2-12(BS)
1.5-2.5
16-14
7.5-8.0
10.7
0.8
2.3
4.5
22.5
12.00
1.9
$0.0

PTNY2-13(BS)
1.5-2.5
16-14
7.5-8.0
10.7
0.8
2.3
4.5
23.5
13.00
1.9
$0.0

PTNY2-14(BS)
1.5-2.5
16-14
7.5-8.0
10.7
0.8
2.3
4.5
24.5
14.00
1.9
$0.0

PTNY2-15(BS)
1.5-2.5
16-14
7.5-8.0
10.7
0.8
2.3
4.5
25.5
15.00
1.9
$0.0

PTNY2-16(BS)
1.5-2.5
16-14
7.5-8.0
10.7
0.8
2.3
4.5
26.7
16.00
1.9
$0.0

PTNY5-10(BS)
4-6
12-10
8.5-9.0
12.7
1
3.4
6.4
22.7
10.00
2.8
$0.0

PTNY5-12(BS)
4-6
12-10
8.5-9.0
12.7
1
3.4
6.4
24.7
12.00
2.8
$0.0

PTNY5-13(BS)
4-6
12-10
8.5-9.0
12.7
1
3.4
6.4
25.7
14.00
2.8
$0.0

PTNY10-12(BS)
10
8
10-10.5
16
2.4
4.5
7.6
30.5
12.00
4.3
$0.0

PTNYB10-12(BS)
10
8
10-10.5
16
2.4
4.5
7.6
30.5
12.00
4.3
$0.0

PTNY16-13(BS)
16
6
12.5-13
21
2.6
5.8
11
36.5
13.00
5.5
$0.0

PTNYB16-13(BS)
16
6
12.5-13
21
2.6
5.8
11
36.5
13.00
5.5
$0.0

PTNY25-15(BS)
25
4
16-16.5
25
2.6
7
11.2
42.5
15.00
6.8
$0.0

PTNYB25-15(BS)
25
4
16-16.5
25
2.6
7
11.2
42.5
15.00
6.8
$0.0

PTNY35-20(BS)
35
2
18.5-19
30.5
3.2
8.4
14
54.5
20.00
8
$0.0

PTNYB35-20(BS)
35
2
18.5-19
30.5
3.2
8.4
14
54.5
20.00
8
$0.0
