Your Position: Home > Wire Terminals > DIN Terminals > NON-INSULATED RING TERMINALS(DIN 46234)

Material:
High-Conductivity Wrought Copper

Finish:
Electro Tin Plate

生成PDF

Cat.No
Stud(Metric)
Application for Cable Size
- mm²
- A.W.G
Stripped Length（mm)

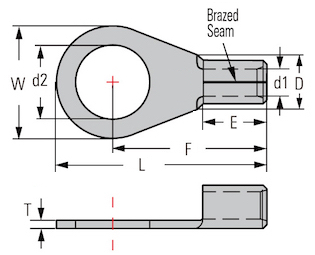

Dimension(mm)
- d2
- d1
- W
- F
- T
- L
- E
- D

DRNB1-2(BS)
2
0.5--1.5
22-16
6.00
2.2
1.7
6
11.00
0.75
14
5
3.4
$0.0

DRNB1-2.5(BS)
2.5
0.5--1.5
22-16
6.00
2.7
1.7
6
11.00
0.75
14
5
3.4
$0.0

DRNB1-3(BS)
3
0.5--1.5
22-16
6.00
3.2
1.7
6
11.00
0.75
14
5
3.4
$0.0

DRNB1-3.5(BS)
3.5
0.5--1.5
22-16
6.00
3.7
1.7
6
11.00
0.75
14
5
3.4
$0.0

DRNB1-4S(BS)
4
0.5--1.5
22-16
6.00
4.3
1.7
7
11.50
0.75
15
5
3.4
$0.0

DRNB1-4(BS)
4
0.5--1.5
22-16
6.00
4.3
1.7
8
12.00
0.75
16
5
3.4
$0.0

DRNB1-5S(BS)
5
0.5--1.5
22-16
6.00
5.3
1.7
8
12.50
0.75
16.5
5
3.4
$0.0

DRNB1-5(BS)
5
0.5--1.5
22-16
6.00
5.3
1.7
10
13.00
0.75
18
5
3.4
$0.0

DRNB1-6(BS)
6
0.5--1.5
22-16
6.00
6.5
1.7
10
13.00
0.75
18
5
3.4
$0.0

DRNB1-6L(BS)
6
0.5--1.5
22-16
6.00
6.5
1.7
11
15.00
0.75
20.5
5
3.4
$0.0

DRNB1-8(BS)
8
0.5--1.5
22-16
6.00
8.4
1.7
14
17.00
0.75
24
5
3.4
$0.0

DRNB1-10(BS)
10
0.5--1.5
22-16
6.00
10.5
1.7
14
17.00
0.75
24
5
3.4
$0.0

DRNB1-10L(BS)
10
0.5--1.5
22-16
6.00
10.5
1.7
18
19.00
0.75
27.5
5
3.4
$0.0

DRNB1-12(BS)
12
0.5--1.5
22-16
6.00
13
1.7
18
20.00
0.75
29
5
3.4
$0.0

DRNB2-3(BS)
3
1.5-2.5
16-14
6.00
3.2
2.3
6
11.00
0.8
14
5
4
$0.0

DRNB2-3.5(BS)
3.5
1.5-2.5
16-14
6.00
3.7
2.3
6
11.00
0.8
14
5
4
$0.0

DRNB2-4S(BS)
4
1.5-2.5
16-14
6.00
4.3
2.3
6.8
11.60
0.8
15
5
4
$0.0

DRNB2-4(BS)
4
1.5-2.5
16-14
6.00
4.3
2.3
8
12.00
0.8
16
5
4
$0.0

DRNB2-5S(BS)
5
1.5-2.5
16-14
6.00
5.3
2.3
8
13.50
0.8
17.5
5
4
$0.0

DRNB2-5(BS)
5
1.5-2.5
16-14
6.00
5.3
2.3
10
14.00
0.8
19
5
4
$0.0

DRNB2-6(BS)
6
1.5-2.5
16-14
6.00
6.5
2.3
11
16.00
0.8
21.5
5
4
$0.0

DRNB2-8(BS)
8
1.5-2.5
16-14
6.00
8.4
2.3
14
17.00
0.8
24
5
4
$0.0

DRNB2-10(BS)
10
1.5-2.5
16-14
6.00
10.5
2.3
15
17.00
0.8
24.5
5
4
$0.0

DRNB2-10L(BS)
10
1.5-2.5
16-14
6.00
10.5
2.3
18
18.50
0.8
27.5
5
4
$0.0

DRNB2-12(BS)
12
1.5-2.5
16-14
6.00
13
2.3
18
20.00
0.8
29
5
4
$0.0

DRNB6-4(BS)
4
4-6
12-10
7.00
4.3
3.4
8
14.00
1
18
6
5.5
$0.0

DRNB6-5(BS)
5
4-6
12-10
7.00
5.3
3.4
10
15.00
1
20
6
5.5
$0.0

DRNB6-6(BS)
6
4-6
12-10
7.00
6.5
3.4
11
16.00
1
21.5
6
5.5
$0.0

DRNB6-8(BS)
8
4-6
12-10
7.00
8.4
3.4
14
19.00
1
26
6
5.5
$0.0

DRNB6-10(BS)
10
4-6
12-10
7.00
10.5
3.4
18
21.00
1
30
6
5.5
$0.0

DRNB6-12(BS)
12
4-6
12-10
7.00
13
3.4
—
—
1
30
6
5.5
$0.0

DRNB10-5(BS)
5
10
8
9.00
5.3
4.5
10
16.00
1.1
21
8
8
$0.0

DRNB10-6(BS)
6
10
8
9.00
6.5
4.5
11
17.00
1.1
22.5
8
8
$0.0

DRNB10-8(BS)
8
10
8
9.00
8.4
4.5
14
20.00
1.1
27
8
8
$0.0

DRNB10-10(BS)
10
10
8
9.00
10.5
4.5
18
21.00
1.1
30
8
8
$0.0

DRNB10-12(BS)
12
10
8
9.00
13
4.5
22
23.00
1.1
34
8
8
$0.0

DRNB16-5(BS)
5
16
6
11.00
5.3
5.8
11
20.00
1.2
25.5
10
10.5
$0.0

DRNB16-6(BS)
6
16
6
11.00
6.5
5.8
11
20.00
1.2
25.5
10
10.5
$0.0

DRNB16-8(BS)
8
16
6
11.00
8.4
5.8
14
22.00
1.2
29
10
10.5
$0.0

DRNB16-10(BS)
10
16
6
11.00
10.5
5.8
18
24.00
1.2
33
10
10.5
$0.0

DRNB16-12(BS)
12
16
6
11.00
13
5.8
22
26.00
1.2
37
10
10.5
$0.0

DRNB25-5(BS)
5
25
4
12.00
5.3
7.5
12
25.00
1.5
31
11
12
$0.0

DRNB25-6(BS)
6
25
4
12.00
6.5
7.5
12
25.00
1.5
31
11
12
$0.0

DRNB25-8(BS)
8
25
4
12.00
8.4
7.5
16
25.00
1.5
33
11
12
$0.0

DRNB25-10(BS)
10
25
4
12.00
10.5
7.5
18
26.00
1.5
35
11
12
$0.0

DRNB25-12(BS)
12
25
4
12.00
13
7.5
22
31.00
1.5
42
11
12
$0.0

DRNB25-16(BS)
16
25
4
12.00
17
7.5
28
35.00
1.5
49
11
12
$0.0

DRNB35-6(BS)
6
35
2
13.00
6.5
9
15
26.00
1.6
33.5
12
15
$0.0

DRNB35-8(BS)
8
35
2
13.00
8.4
9
16
26.00
1.6
34
12
15
$0.0

DRNB35-10(BS)
10
35
2
13.00
10.5
9
18
27.00
1.6
36
12
15
$0.0

DRNB35-12(BS)
12
35
2
13.00
13
9
22
31.00
1.6
42
12
15
$0.0

DRNB35-16(BS)
16
35
2
13.00
17
9
28
36.00
1.6
50
12
15
$0.0

DRNB50-6(BS)
6
50
1/0
17.50
6.5
11
18
34.00
1.8
43
16
17
$0.0

DRNB50-8(BS)
8
50
1/0
17.50
8.4
11
18
34.00
1.8
43
16
17
$0.0

DRNB50-10(BS)
10
50
1/0
17.50
10.5
11
18
34.00
1.8
43
16
17
$0.0

DRNB50-12(BS)
12
50
1/0
17.50
13
11
22
36.00
1.8
47
16
17
$0.0

DRNB50-16(BS)
16
50
1/0
17.50
17
11
28
40.00
1.8
54
16
17
$0.0

DRNB70-6(BS)
6
70
2/0
19.50
6.5
13
22
38.00
2
49
18
21
$0.0

DRNB70-8(BS)
8
70
2/0
19.50
8.4
13
22
38.00
2
49
18
21
$0.0

DRNB70-10(BS)
10
70
2/0
19.50
10.5
13
22
38.00
2
49
18
21
$0.0

DRNB70-12(BS)
12
70
2/0
19.50
13
13
22
38.00
2
49
18
21
$0.0

DRNB95-8(BS)
8
95
3/0
21.50
8.4
15
24
42.00
2.5
54
20
23
$0.0

DRNB95-10(BS)
10
95
3/0
21.50
10.5
15
24
42.00
2.5
54
20
23
$0.0

DRNB95-12(BS)
12
95
3/0
21.50
13
15
24
42.00
2.5
54
20
23
$0.0

DRNB95-16(BS)
16
95
3/0
21.50
17
15
28
44.00
2.5
58
20
23
$0.0

DRNB120-8(BS)
8
120
4/0
23.50
8.4
16.5
24
44.00
3
56
22
24
$0.0

DRNB120-10(BS)
10
120
4/0
23.50
10.5
16.5
24
44.00
3
56
22
24
$0.0

DRNB120-12(BS)
12
120
4/0
23.50
13
16.5
24
44.00
3
56
22
24
$0.0

DRNB120-16(BS)
16
120
4/0
23.50
17
16.5
28
48.00
3
62
22
24
$0.0

DRNB150-10(BS)
10
150
250/300
26.00
10.5
19
30
50.00
3.2
65
24
28
$0.0

DRNB150-12(BS)
12
150
250/300
26.00
13
19
30
50.00
3.2
65
24
28
$0.0

DRNB150-16(BS)
16
150
250/300
26.00
17
19
30
50.00
3.2
65
24
28
$0.0

DRNB185-10(BS)
10
185
350/500
30.00
10.5
21
36
50.00
3.5
68
28
33
$0.0

DRNB185-12(BS)
12
185
350/500
30.00
13
21
36
50.00
3.5
68
28
33
$0.0

DRNB185-16(BS)
16
185
350/500
30.00
17
21
36
50.00
3.5
68
28
33
$0.0

DRNB240-10(BS)
10
240
400/450
34.00
10.5
23.5
38
56.00
4
75
32
36
$0.0

DRNB240-12(BS)
12
240
400/450
34.00
13
23.5
38
56.00
4
75
32
36
$0.0

DRNB240-16(BS)
16
240
400/450
34.00
17
23.5
38
56.00
4
75
32
36
$0.0
