当前位置:
首页
>
IEC标准大电流端子
>
J系列
>
单孔0度
单孔0度
单孔45度
单孔90度
Material:
High-Conductivity Wrought Copper
Finish:
Electro Tin Plate
生成PDF
上一页
下一页
共/1页

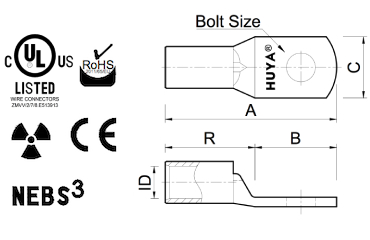

Cat.No
Code
Bolt Size
Dimensions (mm)
A
B
C
R
ID
J08AN0808
8
#8
1.15
0.48
0.41
0.18
0.18
$0.0
J08AN0810
8
#10
1.11
0.44
0.41
0.18
0.18
$0.0
J08AN0814
8
1/4
1.17
0.50
0.45
0.18
0.18
$0.0
J08AN0856
8
5/16
1.29
0.62
0.56
0.18
0.18
$0.0
J08AN0838
8
3/8
1.29
0.62
0.56
0.18
0.18
$0.0
J06AN0610
6
#10
1.30
0.52
0.49
0.20
0.22
$0.0
J06AN0614
6
1/4
1.30
0.52
0.49
0.20
0.22
$0.0
J06AN0656
6
5/16
1.42
0.64
0.60
0.20
0.22
$0.0
J06AN0638
6
3/8
1.42
0.64
0.60
0.20
0.22
$0.0
J04AN0410
4
#10
1.37
0.57
0.55
0.25
0.27
$0.0
J04AN0414
4
1/4
1.37
0.57
0.55
0.25
0.27
$0.0
J04AN0456
4
5/16
1.45
0.65
0.62
0.25
0.27
$0.0
J04AN0438
4
3/8
1.45
0.65
0.62
0.25
0.27
$0.0
J02AN0110
2
#10
1.57
0.71
0.70
0.25
0.36
$0.0
J02AN0114
2
1/4
1.57
0.71
0.70
0.25
0.36
$0.0
J02AN0156
2
5/16
1.57
0.71
0.70
0.25
0.36
$0.0
J02AN0138
2
3/8
1.71
0.85
0.70
0.25
0.36
$0.0
J02AN0176
2
7/16
1.75
0.89
0.77
0.25
0.36
$0.0
J02AN0112
2
1/2
1.71
0.85
0.77
0.25
0.36
$0.0
J01AN1014
1AN-1/0
1/4
1.76
0.85
0.77
0.28
0.40
$0.0
J01AN1056
1AN-1/0
5/16
1.85
0.94
0.77
0.28
0.40
$0.0
J01AN1038
1AN-1/0
3/8
1.85
0.94
0.77
0.28
0.40
$0.0
J01AN1076
1AN-1/0
7/16
1.76
0.85
0.77
0.28
0.40
$0.0
J01AN1012
1/0
1/2
1.76
0.85
0.77
0.28
0.40
$0.0
J10AN2014
1/0AN-2/0
1/4
1.93
0.94
0.84
0.30
0.44
$0.0
J10AN2056
1/0AN-2/0
5/16
1.91
0.92
0.84
0.30
0.44
$0.0
J10AN2038
1/0AN-2/0
3/8
1.91
0.92
0.84
0.30
0.44
$0.0
J10AN2076
1/0AN-2/0
7/16
1.93
0.94
0.89
0.30
0.44
$0.0
J10AN2012
1/0AN-2/0
1/2
1.93
0.94
0.89
0.30
0.44
$0.0
J10AN2058
2/0
5/8
1.93
0.94
0.89
0.30
0.44
$0.0
J20AN3014
2/0AN-3/0
1/4
2.07
0.93
0.95
0.32
0.51
$0.0
J20AN3056
2/0AN-3/0
5/16
2.07
0.93
0.95
0.32
0.51
$0.0
J20AN3038
2/0AN-3/0
3/8
2.12
0.98
0.95
0.32
0.51
$0.0
J20AN3076
2/0AN-3/0
7/16
2.12
0.98
0.95
0.32
0.51
$0.0
J20AN3012
3/0
1/2
2.12
0.98
0.95
0.32
0.51
$0.0
J30AN4056
3/0AN-4/0
5/16
2.16
1.02
1.04
0.32
0.56
$0.0
J30AN4038
3/0AN-4/0
3/8
2.17
1.03
1.04
0.32
0.56
$0.0
J30AN4076
3/0AN-4/0
7/16
2.17
1.03
1.04
0.32
0.56
$0.0
J30AN4012
4/0
1/2
2.17
1.03
1.04
0.32
0.56
$0.0
J40AN2514
4/0AN-250MCM
1/4
2.44
1.13
1.14
0.35
0.63
$0.0
J40AN2556
4/0AN-250MCM
5/16
2.44
1.13
1.14
0.35
0.63
$0.0
J40AN2538
4/0AN-250MCM
3/8
2.44
1.13
1.14
0.35
0.63
$0.0
J40AN2576
4/0AN-250MCM
7/16
2.55
1.24
1.14
0.35
0.63
$0.0
J40AN2512
250MCM
1/2
2.55
1.24
1.14
0.35
0.63
$0.0
总计
44
个记录
