Your Position: Home > Wire Terminals > Copper Terminals > VINYL-INSULATED RING TERMINALS

Material:
High-Conductivity Wrought Copper

Finish:
Electro Tin Plate

生成PDF

Cat.No
Stud(Metric)
Application for Cable Size
- mm²
- A.W.G
Stripped Length（mm)

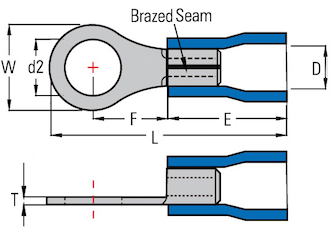

Dimension(mm)
- D
- E
- L
- T
- F
- W
- d1
- d2

RV2232BS
3
0.5-1.5
22-16
6.5-7.0
4.3
10
17.5
0.75
4.80
5.5
1.7
3.2
$0.0

RV2237SBS
3.5
0.5-1.5
22-16
6.5-7.0
4.3
10
17.5
0.75
4.80
5.5
1.7
3.7
$0.0

RV2237MBS
3.5
0.5-1.5
22-16
6.5-7.0
4.3
10
19.4
0.75
6.30
6.6
1.7
3.7
$0.0

RV2237LBS
3.5
0.5-1.5
22-16
6.5-7.0
4.3
10
20.8
0.75
7.00
8
1.7
3.7
$0.0

RV2204SBS
4
0.5-1.5
22-16
6.5-7.0
4.3
10
19.4
0.75
6.30
6.6
1.7
4.3
$0.0

RV2204LBS
4
0.5-1.5
22-16
6.5-7.0
4.3
10
20.8
0.75
7.00
8
1.7
4.3
$0.0

RV2205BS
5
0.5-1.5
22-16
6.5-7.0
4.3
10
20.8
0.75
7.00
8
1.7
5.3
$0.0

RV2205LBS
5
0.5-1.5
22-16
6.5-7.0
4.3
10
26.7
0.75
11.00
11.8
1.7
5.3
$0.0

RV2206BS
6
0.5-1.5
22-16
6.5-7.0
4.3
10
26.7
0.75
11.00
11.8
1.7
6.4
$0.0

RV2208BS
8
0.5-1.5
22-16
6.5-7.0
4.3
10
26.7
0.75
11.00
11.8
1.7
8.4
$0.0

RV2210BS
10
0.5-1.5
22-16
6.5-7.0
4.3
10
30.5
0.75
13.90
13.6
1.7
10.5
$0.0

RV1632BS
3
1.5-2.5
16-14
6.5-7.0
4.8
10
17.8
0.8
4.70
6.6
2.3
3.2
$0.0

RV1637SBS
3.5
1.5-2.5
16-14
6.5-7.0
4.8
10
17.8
0.8
4.70
6.6
2.3
3.7
$0.0

RV1637MBS
3.5
1.5-2.5
16-14
6.5-7.0
4.8
10
19.5
0.8
6.30
6.6
2.3
3.7
$0.0

RV1637LBS
3.5
1.5-2.5
16-14
6.5-7.0
4.8
10
21.8
0.8
7.40
8.5
2.3
3.7
$0.0

RV1604SBS
4
1.5-2.5
16-14
6.5-7.0
4.8
10
19.5
0.8
6.30
6.6
2.3
4.3
$0.0

RV1604LBS
4
1.5-2.5
16-14
6.5-7.0
4.8
10
21.8
0.8
7.80
8.5
2.3
4.3
$0.0

RV1605SBS
5
1.5-2.5
16-14
6.5-7.0
4.8
10
21.8
0.8
7.80
8.5
2.3
5.3
$0.0

RV1605LBS
5
1.5-2.5
16-14
6.5-7.0
4.8
10
22
0.8
7.30
9.6
2.3
5.3
$0.0

RV1606BS
6
1.5-2.5
16-14
6.5-7.0
4.8
10
26.9
0.8
11.00
12
2.3
6.4
$0.0

RV1608BS
8
1.5-2.5
16-14
6.5-7.0
4.8
10
26.9
0.8
11.00
12
2.3
8.4
$0.0

RV1610BS
10
1.5-2.5
16-14
6.5-7.0
4.8
10
30.5
0.8
13.60
13.6
2.3
10.5
$0.0

RV1237BS
3.5
4-6
12-10
7.0-8.0
6.7
13
22.7
1
6.10
7.2
3.4
3.7
$0.0

RV1204SBS
4
4-6
12-10
7.0-8.0
6.7
13
22.7
1
6.10
7.2
3.4
4.3
$0.0

RV1204LBS
4
4-6
12-10
7.0-8.0
6.7
13
26
1
8.30
9.5
3.4
4.3
$0.0

RV1205BS
5
4-6
12-10
7.0-8.0
6.7
13
26
1
8.30
9.5
3.4
5.3
$0.0

RV1206BS
6
4-6
12-10
7.0-8.0
6.7
13
29.5
1
10.50
12
3.4
6.4
$0.0

RV1208BS
8
4-6
12-10
7.0-8.0
6.7
13
34
1
13.50
15
3.4
8.4
$0.0

RV1210BS
10
4-6
12-10
7.0-8.0
6.7
13
34
1
13.50
15
3.4
10.5
$0.0

RV1212BS
12
4-6
12-10
7.0-8.0
6.7
13
38.6
1
16.00
19.2
3.4
13
$0.0
