Your Position: Home > Wire Terminals > Water Proof Heat Shrinkable > HEAT SHRINKABLE-INSULATED (EASY ENTRY) DOUBLE CRIMP RING TERMINALS(DIN46237)

Material:
High-Conductivity Wrought Copper

Finish:
Electro Tin Plate

生成PDF

Cat.No
Application for Cable Size
- mm²
- A.W.G
Stripped Length(mm)

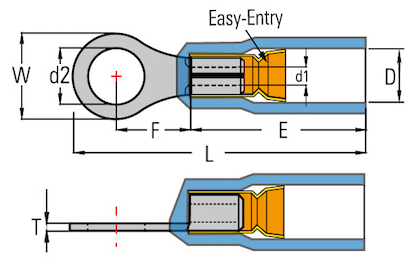

Dimension(mm)
- D
- E
- L
- T
- F
- W
- d1
- d2

RHSDE2202
0.5-1
22-16
6.5-7.0
4.7
17
26
0.75
17.00
6
1.6
2.2
$0.0

RHSDE2225
0.5-1
22-16
6.5-7.0
4.7
17
26
0.75
17.00
6
1.6
2.7
$0.0

RHSDE2203
0.5-1
22-16
6.5-7.0
4.7
17
26
0.75
17.00
6
1.6
3.2
$0.0

RHSDE2235
0.5-1
22-16
6.5-7.0
4.7
17
26
0.75
17.00
6
1.6
3.7
$0.0

RHSDE2204S
0.5-1
22-16
6.5-7.0
4.7
17
27
0.75
17.50
7
1.6
4.3
$0.0

RHSDE2204
0.5-1
22-16
6.5-7.0
4.7
17
28
0.75
18.00
8
1.6
4.3
$0.0

RHSDE2205S
0.5-1
22-16
6.5-7.0
4.7
17
28.5
0.75
18.50
8
1.6
5.3
$0.0

RHSDE2205
0.5-1
22-16
6.5-7.0
4.7
17
30
0.75
19.00
10
1.6
5.3
$0.0

RHSDE2206
0.5-1
22-16
6.5-7.0
4.7
17
30
0.75
19.00
10
1.6
6.4
$0.0

RHSDE2206L
0.5-1
22-16
6.5-7.0
4.7
17
32.5
0.75
21.00
11
1.6
6.4
$0.0

RHSDE2208
0.5-1
22-16
6.5-7.0
4.7
17
36
0.75
23.00
14
1.6
8.5
$0.0

RHSDE2210
0.5-1
22-16
6.5-7.0
4.7
17
36
0.75
23.00
14
1.6
10.5
$0.0

RHSDE2210L
0.5-1
22-16
6.5-7.0
4.7
17
40
0.75
25.00
18
1.6
10.5
$0.0

RHSDE2212
0.5-1
22-16
6.5-7.0
4.7
17
41
0.75
26.00
18
1.6
13
$0.0

RHSDE1603
1-2.5
16-14
6.5-7.0
5.7
17
26
0.8
17.00
6
2.3
3.2
$0.0

RHSDE1635
1-2.5
16-14
6.5-7.0
5.7
17
26
0.8
17.00
6
2.3
3.7
$0.0

RHSDE1604S
1-2.5
16-14
6.5-7.0
5.7
17
27
0.8
17.60
6.8
2.3
4.3
$0.0

RHSDE1604
1-2.5
16-14
6.5-7.0
5.7
17
28
0.8
18.00
8
2.3
4.3
$0.0

RHSDE1605S
1-2.5
16-14
6.5-7.0
5.7
17
29.5
0.8
19.50
8
2.3
5.3
$0.0

RHSDE1605
1-2.5
16-14
6.5-7.0
5.7
17
31
0.8
20.00
10
2.3
5.3
$0.0

RHSDE1606
1-2.5
16-14
6.5-7.0
5.7
17
33.5
0.8
22.00
11
2.3
6.4
$0.0

RHSDE1608
1-2.5
16-14
6.5-7.0
5.7
17
36
0.8
23.00
14
2.3
8.5
$0.0

RHSDE1610
1-2.5
16-14
6.5-7.0
5.7
17
36.5
0.8
17.00
15
2.3
10.5
$0.0

RHSDE1610L
1-2.5
16-14
6.5-7.0
5.7
17
39.5
0.8
24.50
18
2.3
10.5
$0.0

RHSDE1612
1-2.5
16-14
6.5-7.0
5.7
17
41
0.8
26.00
18
2.3
13
$0.0

RHSDE1604
4-6
12--10
7.0-8.0
8.3
20
32.3
1
21.00
8
3.4
4.3
$0.0

RHSDE1605
4-6
12--10
7.0-8.0
8.3
20
34
1
22.00
10
3.4
5.3
$0.0

RHSDE1606
4-6
12--10
7.0-8.0
8.3
20
35
1
23.00
11
3.4
6.4
$0.0

RHSDE1608
4-6
12--10
7.0-8.0
8.3
20
40
1
26.00
14
3.4
8.5
$0.0

RHSDE1610
4-6
12--10
7.0-8.0
8.3
20
44
1
28.00
18
3.4
10.5
$0.0

RHSDE1612
4-6
12--10
7.0-8.0
8.3
20
44
1
28.00
18
3.4
13
$0.0

RHSD2232
0.5-1.5
22-16
6.5-7.0
4.7
17
24.5
0.75
4.80
5.5
1.7
3.2
$0.0

RHSD2237S
0.5-1.5
22-16
6.5-7.0
4.7
17
24.5
0.75
4.80
5.5
1.7
3.7
$0.0

RHSD2237M
0.5-1.5
22-16
6.5-7.0
4.7
17
26.4
0.75
6.30
6.6
1.7
3.7
$0.0

RHSD2237L
0.5-1.5
22-16
6.5-7.0
4.7
17
27.8
0.75
7.00
8
1.7
3.7
$0.0

RHSD2204S
0.5-1.5
22-16
6.5-7.0
4.7
17
26.4
0.75
6.30
6.6
1.7
4.3
$0.0

RHSD2204L
0.5-1.5
22-16
6.5-7.0
4.7
17
27.8
0.75
7.00
8
1.7
4.3
$0.0

RHSD2205
0.5-1.5
22-16
6.5-7.0
4.7
17
27.8
0.75
7.00
8
1.7
5.3
$0.0

RHSD2205L
0.5-1.5
22-16
6.5-7.0
4.7
17
33.7
0.75
11.00
11.8
1.7
5.3
$0.0

RHSD2206
0.5-1.5
22-16
6.5-7.0
4.7
17
33.7
0.75
11.00
11.8
1.7
6.4
$0.0

RHSD2208
0.5-1.5
22-16
6.5-7.0
4.7
17
33.7
0.75
11.00
11.8
1.7
8.4
$0.0

RHSD2210
0.5-1.5
22-16
6.5-7.0
4.7
17
37.5
0.75
13.90
13.6
1.7
10.5
$0.0

RHSD1632
1.5-2.5
16-14
6.5-7.0
5.7
17
24.8
0.8
4.70
6.6
2.3
3.2
$0.0

RHSD1637S
1.5-2.5
16-14
6.5-7.0
5.7
17
24.8
0.8
4.70
6.6
2.3
3.7
$0.0

RHSD1637M
1.5-2.5
16-14
6.5-7.0
5.7
17
26.5
0.8
6.30
6.6
2.3
3.7
$0.0

RHSD1637L
1.5-2.5
16-14
6.5-7.0
5.7
17
28.8
0.8
7.40
8.5
2.3
3.7
$0.0

RHSD1604S
1.5-2.5
16-14
6.5-7.0
5.7
17
26.5
0.8
6.30
6.6
2.3
4.3
$0.0

RHSD1604L
1.5-2.5
16-14
6.5-7.0
5.7
17
28.8
0.8
7.80
8.5
2.3
4.3
$0.0

RHSD1605S
1.5-2.5
16-14
6.5-7.0
5.7
17
28.8
0.8
7.80
8.5
2.3
5.3
$0.0

RHSD1605L
1.5-2.5
16-14
6.5-7.0
5.7
17
29
0.8
7.30
9.6
2.3
5.3
$0.0

RHSD1606
1.5-2.5
16-14
6.5-7.0
5.7
17
33.9
0.8
11.00
12
2.3
6.4
$0.0

RHSD1608
1.5-2.5
16-14
6.5-7.0
5.7
17
33.9
0.8
11.00
12
2.3
8.4
$0.0

RHSD1610
1.5-2.5
16-14
6.5-7.0
5.7
17
37.5
0.8
13.60
13.6
2.3
10.5
$0.0

RHSD1237
4-6
12--10
7.0-8.0
8.3
20
29.7
1
6.10
7.2
3.4
3.7
$0.0

RHSD1204S
4-6
12--10
7.0-8.0
8.3
20
29.7
1
6.10
7.2
3.4
4.3
$0.0

RHSD1204L
4-6
12--10
7.0-8.0
8.3
20
33
1
8.30
9.5
3.4
4.3
$0.0

RHSD1205
4-6
12--10
7.0-8.0
8.3
20
33
1
8.30
9.5
3.4
5.3
$0.0

RHSD1206
4-6
12--10
7.0-8.0
8.3
20
36.5
1
10.50
12
3.4
6.4
$0.0

RHSD1208
4-6
12--10
7.0-8.0
8.3
20
41
1
13.50
15
3.4
8.4
$0.0

RHSD1210
4-6
12--10
7.0-8.0
8.3
20
41
1
13.50
15
3.4
10.5
$0.0

RHSD1212
4-6
12--10
7.0-8.0
8.3
20
45.6
1
16.00
19.2
3.4
13
$0.0
